EVTTS In line silenced fans

Recommend this product
Home General catalogue Ventilation Duct Fans Evtts In Line Silenced Fans
Register Now

Description

Fans for circular ducts with acoustic insulation and single-phase motor.

Characteristics

Painted steel casing.
Internal perforated sheet .
Mineral wool insulation thickness 50 mm.
Protection rating: IPX4.

Use

On circular ducts where it is necessary to limit the noise .

Accessories

Electronic speed regulator: RCS 300 .

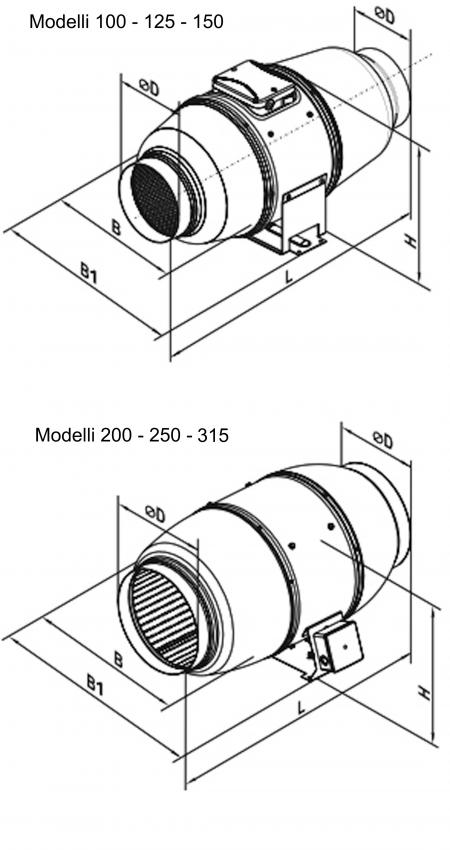

dimensions

all measurements are in mm


modello dimensioni peso
kg
Ø D B B1 L H
100 98 215 243 505 237 4,6
125 123 215 243 474 237 4,6
150 147 247 274 580 260 6,1
200 198 293 386 550 295 8
250 248 358 445 658 360 15
315 313 432 520 780 434 25

Operating data

dB (A ) : noise index to 3 m.

All fans have 2 speeds except the EVTTS 200 model which has 3 speeds.

modello Velocità giri potenza assorbita  °C max dB(A) portata m3/h
 W  A 0 Pa 50 Pa 100 Pa 150 Pa 200 Pa  250 Pa 350 Pa 400 Pa
100 min 2030 24 0,10 60 24 170 110 35
max 2630 26 0,11 60 29 240 175 100
125 min 1650 25 0,11 60 23 230 175 20
max 2310 29 0,13 60 28 340 265 120
 150 min 1970 45 0,20 60 26 405 360 280 140
max 2645 52 0,23 60 33 550 510 460 375 125
200 min 2376 82 0,37 60 30 730 590 460 330
med 2382 100 0,44 60 34 960 850 740 590 370 140
max 2445 110 0,49 60 36 1020 920 810 680 540 360
250 min 1965 127 0,52 60 34 1050 890 710 590 420 250
max 2495 178 0,79 60 38 1330 1220 1120 1020 900 750 400 200
315 min 1975 213 0,93 60 36 1530 1300 1200 1000 770 600 270 125
max 2545 313 1,41 60 40 1950 1800 1700 1550 1480 1300 1030 850

Price list

Item normally available from stock
modello euro
100 359,70
125 371,49
150 463,89
200 562,89
250 864,13
315 1154,53

Speed control

Item normally available from stock
Modello Euro
RCS 300 104,40
