EVHRP-LARGE, Heat recovery unit, with an efficiency more as 90% and flow rates from 630 to 780 m³/h
EVHRP-LARGE Heat recovery unit, with an efficiency more as 90% and flow rates from 630 to 780 m³/h
Description
Ventilation unit with very high efficiency heat recovery, compact size for ceiling, wall or floor installation.
The unit is particularly suitable for individual family units, flats and in all cases where the nominal air exchange rates are less than 780 m³/h.
Tested and classified according to the European Ecodesign regulation ref. 1253/2014 and 1254/2014.
Characteristics
- Galvanised sheet metal self-supporting frame painted RAL9003 on the outside, shaped EPS internal structure with density 40kg/m³, compact size and reduced height for easy installation with lower panel easily accessible for maintenance and inspections.
- Very high efficiency polypropylene static heat exchanger with counter-current flows.
- Backward-curved radial centrifugal fans with EC motors with electronic speed control and low energy consumption.
- Filters class ePM1 70-80% with low pressure drop.
- Motorised bypass with motor inserted in the electrical panel for easy maintenance.
Control electronics
With electronic board for 3-step speed management, antifreeze function and automatic bypass. Wall-mounted remote touch panel on 503 box.
On-board temperature sensors and possibility of managing auxiliary hot water coil.
Humidity / air quality regulators built into the remote display.
EVCNV2-N: advanced remote control with built-in humidity and VOC/CO₂ sensors, black.
EVCNV2-B: advanced remote control with built-in humidity and VOC/CO₂ sensors, white.
EVCNW2-N: advanced remote control with built-in humidity and VOC/CO₂ sensors and built-in Wi-Fi, black.
EVCNW2-B: advanced remote control with built-in humidity and VOC/CO₂ sensors and built-in Wi-Fi, white.
Use
Houses, surgeries and shops for air exchange with up to 90% reduction in energy waste.
On request
Version with enthalpy exchange pack (only for size 600).
Version for recessed installation (only for size 700).
Technical specifications
| EVHRP-LARGE size | 600 H | 700 V | ||
| Type of Fans | Forward-curved centrifugal - Brushless direct-coupled electronic motor | |||
| Number of Fans | No. | 2 | ||
| Air flow rate | m³/h | 630 | 780 | |
| Useful pressure | Pa | 100 | 100 | |
| Heat exchanger (Data referring to the UNI EN 13141-7 Standard Indoor temp. 20° - Indoor humidity 28% - Outside temp. 7° - Outside humidity 72%) | ||||
| Type of heat exchanger | Counter-current plates - polypropylene | |||
| Number of Heat exchangers | No. | 1 | ||
| Heat recovery efficiency | % | 86,1 | 85,9 | |
| Filters | ||||
| Type of filters | Flat filters | |||
| Filtration class | ePM1 80% | |||
| Acoustic data (Data referring to the UNI EN 3741 and UNI EN 3744 Standards) | ||||
| Sound power Lw transmitted by the structure | dB(A) | 65 | 64 | |
| Sound power Lw radiated into the duct | dB(A) | 72 | 70 | |
| Average sound pressure Lp at 1 m | dB(A) | 50,5 | 49,3 | |
| Average sound pressure Lp at 3 m | dB(A) | 43,1 | 42,5 | |
| Electrical data | ||||
| Power supply | V / ph / Hz | 230 / 1 / 50 | ||
| Current consumption | A | 2,2 | 2,8 | |
| Power consumption | W | 390 | 440 | |
| Protection rating | IP | X0 | X0 | |
| Dimensions | ||||
| Width | mm | 1478 | VISIBLE version | RECESSED version |
| 642 | 595 | |||
| Depth | mm | 955 | 603 | 595 |
| Height | mm | 283 | 1483 | 1400 |
| Connection diameter | mm | 200 | 200 | |
| Condensate drain | mm | 20 | 20 | |
Horizontal version configurations (size 600H)
The units are shown from above.
Standard H1 configuration.

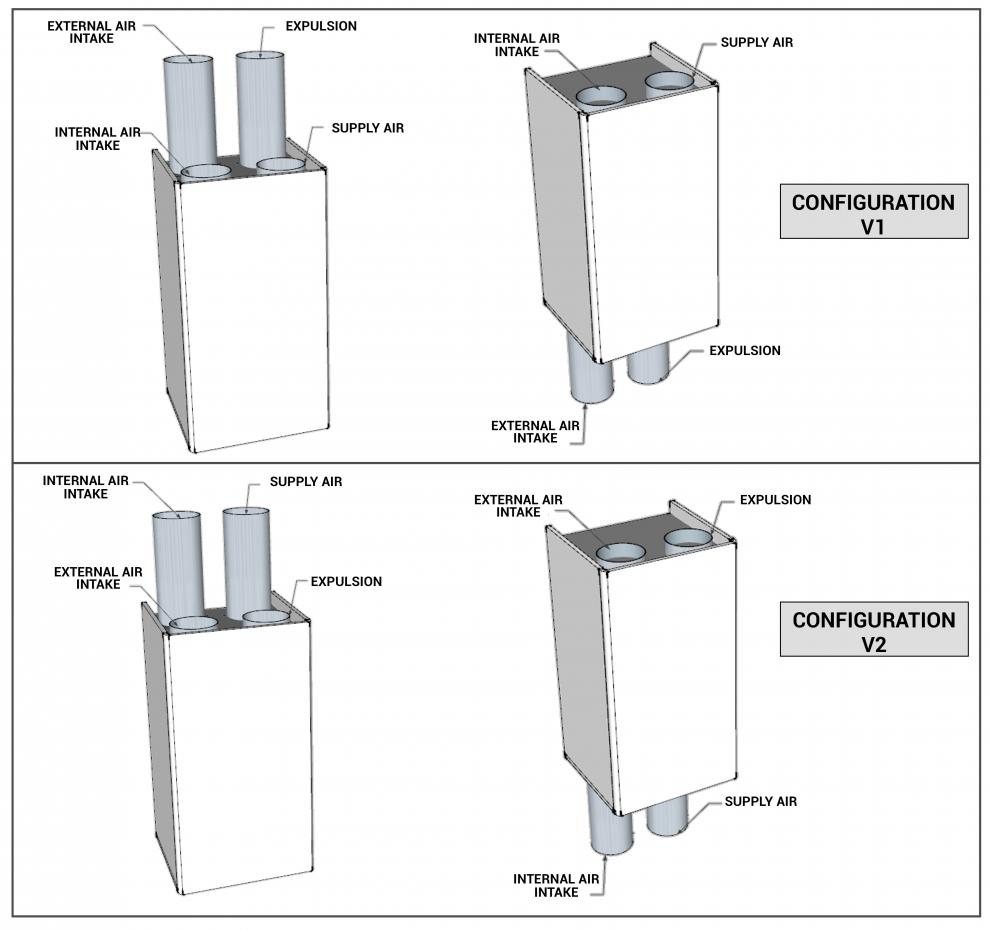

Vertical version configurations (size 700V)
The units are shown from above.
Standard V1 configuration.
Installation of visible EVHRP LARGE
Installation of recessed EVHRP LARGE
Price list of recuperator
Standard H1 and V1 configurations
Accessory price list
| model | remote electronic control EVCNV2-B white | remote electronic control EVCNV2-N black | remote electronic control EVCNW2-B with Wi-Fi connection white | emote electronic control EVCNW2-N with Wi-Fi connection black | pair of filters kit |
| euro | euro | euro | euro | euro | |
| EVHRP LARGE-H-I 600H | 230,88 | 230,88 | 285,05 | 285,05 | 174,03 |
| EVHRP LARGE-VV-I 700V | 230,88 | 230,88 | 285,05 | 285,05 | 200,71 |
| EVHRP LARGE-VS-I 700V | 230,88 | 230,88 | 285,05 | 285,05 | 200,71 |
