EVBH, Water coils for residential series recuperators
EVBH Water coils for residential series recuperators
Description
The pre / post water heating units consist of a galvanized sheet frame and a heat exchange or refrigerator battery made of copper tubes and aluminum fins.
They are equipped with circular flanges that facilitate installation to the duct and threaded circular connections including valves for air venting and battery discharge.
Associated water coil for model:
| Modello | EVBH 1 | EVBH 2 |
| EVHRP-SP | 20H - 20V | 30H-40H-50H-30V-40V-50V |
| EVHRP SMALL | 10H/V - 15H/V |
Water battery technical data for heating or cooling
The units of pre / post water consist of galvanized sheet metal frame and a heat exchanger termicocomposta from copper pipes and aluminum fins.
They are equipped with circular flanges that facilitate the installation of the pipe and threaded spigots include valves for air venting and draining the battery.
| Modello | EVBH 1 | EVBH 2 | |||
| Modello compatibile unità | 20 H / V | 30 H / V | 40 H / V | 50 H / V | |
| Potenza termica nominale (1) | kW | 0,88 | 1,86 | 2,27 | 2,66 |
| Portata acqua nominale (1) | m³/h | 0,08 | 0,16 | 0,2 | 0,23 |
| Perdita di carico lato acqua (1) | Kpa | 3,9 | 4 | 6,1 | 7,4 |
| Temperatura di mandata (1) | °C | 34,5 | 35,8 | 34,8 | 33,2 |
| Potenza frigorifera sensibile (2) | kW | 0,52 | 1,01 | 1,1 | 2,4 |
| Potenza frigorifera latente (2) | kW | 0,4 | 0,62 | 0,85 | 1,46 |
| Portata acqua nominale (2) | m³/h | 0,16 | 0,28 | 0,33 | 0,41 |
| Perdita di carico lato acqua (2) | Kpa | 15,1 | 16,3 | 16,3 | 25 |
| Temperatura di mandata (2) | °C | 15,4 | 15,7 | 16,4 | 17,5 |
| Perdita di carico lato aria | Pa | 8 | 10 | 12 | 33 |

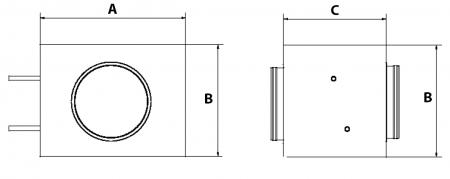

| Altezza (B ) | mm | 150 | 250 | 250 | 250 |
| Larghezza (A ) | mm | 300 | 300 | 300 | 300 |
| Profondità (C ) | mm | 250 | 250 | 250 | 250 |
| Diametro imbocchi | Ø | 125 | 160 | 160 | 160 |
| Attacchi acqua | Ø | 1/2" | 1/2" | 1/2" | 1/2" |
