EGA-ONE Grill for plenum ONE-BOX
Description:
Rectangular steel grill with smooth and uniform frontal surface in a single body. Design with 30 mm perimeter frame and inside with 4 mm diameter circular holes or 4 mm squares on each side for optimal flow distribution over the entire surface. Optimized construction for maximum rigidity.
RAL9003 painting with surface treatment for maximum corrosion resistance. Quick coupling system with direct connection by means of special pins behind it, designed specifically for coupling with the spring clips on the front of the ONE BOX® series plenums and designed to guarantee a variable travel from 0 to 30 mm to correct the any misalignment between the plenum and the wall.
Models :
EGAFQ-ONE egg crate grill.
EGAFR-ONE perforated grill.

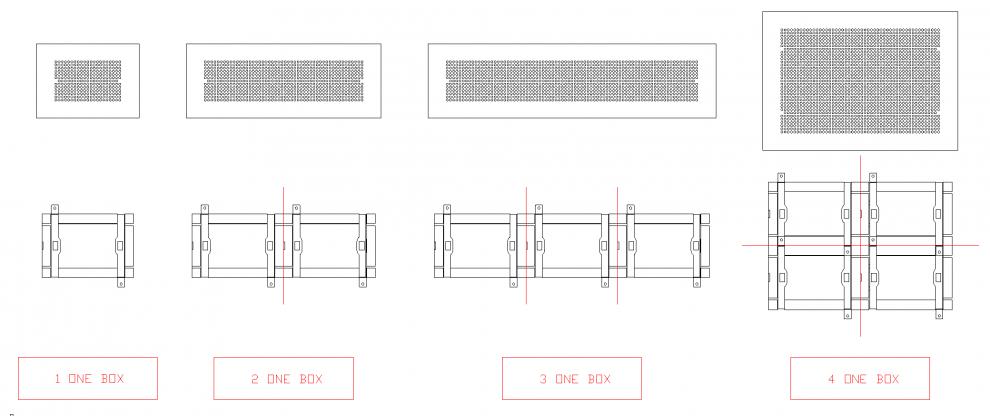

Configurations:
Air flow rate and pressure drop:
| Model | Grille drawing | dimensions external frame BxH (mm) | number of ONE BOX | flow rate (m³/h) | ||||||||
| 20 | 40 | 60 | 80 | 100 | 120 | 140 | 160 | 180 | ||||
| Pressure drop (Pa) | ||||||||||||
| EGAFQ-ONE 1 | Egg crate grille | 193 x 140 | 1 | 2 | 4 | |||||||
| EGAFQ-ONE 2 | Egg crate grille | 366 x 140 | 2 | 1 | 1 | 2 | 4 | |||||
| EGAFQ-ONE 3 | Egg crate grille | 540 x 140 | 3 | 1 | 2 | 3 | 4 | 5 | ||||
| EGAFQ-ONE 4 | Egg crate grille | 366 x 260 | 4 | 1 | 2 | 3 | 4 | 5 | 6 | |||
| EGAFR-ONE 1 | Perforated grille | 193 x 140 | 1 | 3 | 9 | |||||||
| EGAFR-ONE 2 | Perforated grille | 366 x 140 | 2 | 1 | 3 | 5 | 9 | |||||
| EGAFR-ONE 3 | Perforated grille | 540 x 140 | 3 | 3 | 4 | 7 | 10 | 13 | ||||
| EGAFR-ONE 4 | Perforated grille | 366 x 260 | 4 | 3 | 4 | 5 | 7 | 9 | 13 | |||
Price list
| Model | Grille drawing | Euro |
| EGAFQ-ONE 1 | Egg crate grille | 40,55 |
| EGAFQ-ONE 2 | Egg crate grille | 54,66 |
| EGAFQ-ONE 3 | Egg crate grille | 67,88 |
| EGAFQ-ONE 4 | Egg crate grille | 74,93 |
| EGAFR-ONE 1 | Perforated grille | 40,55 |
| EGAFR-ONE 2 | Perforated grille | 54,66 |
| EGAFR-ONE 3 | Perforated grille | 67,88 |
| EGAFR-ONE 4 | Perforated grille | RartEN9000300 |
