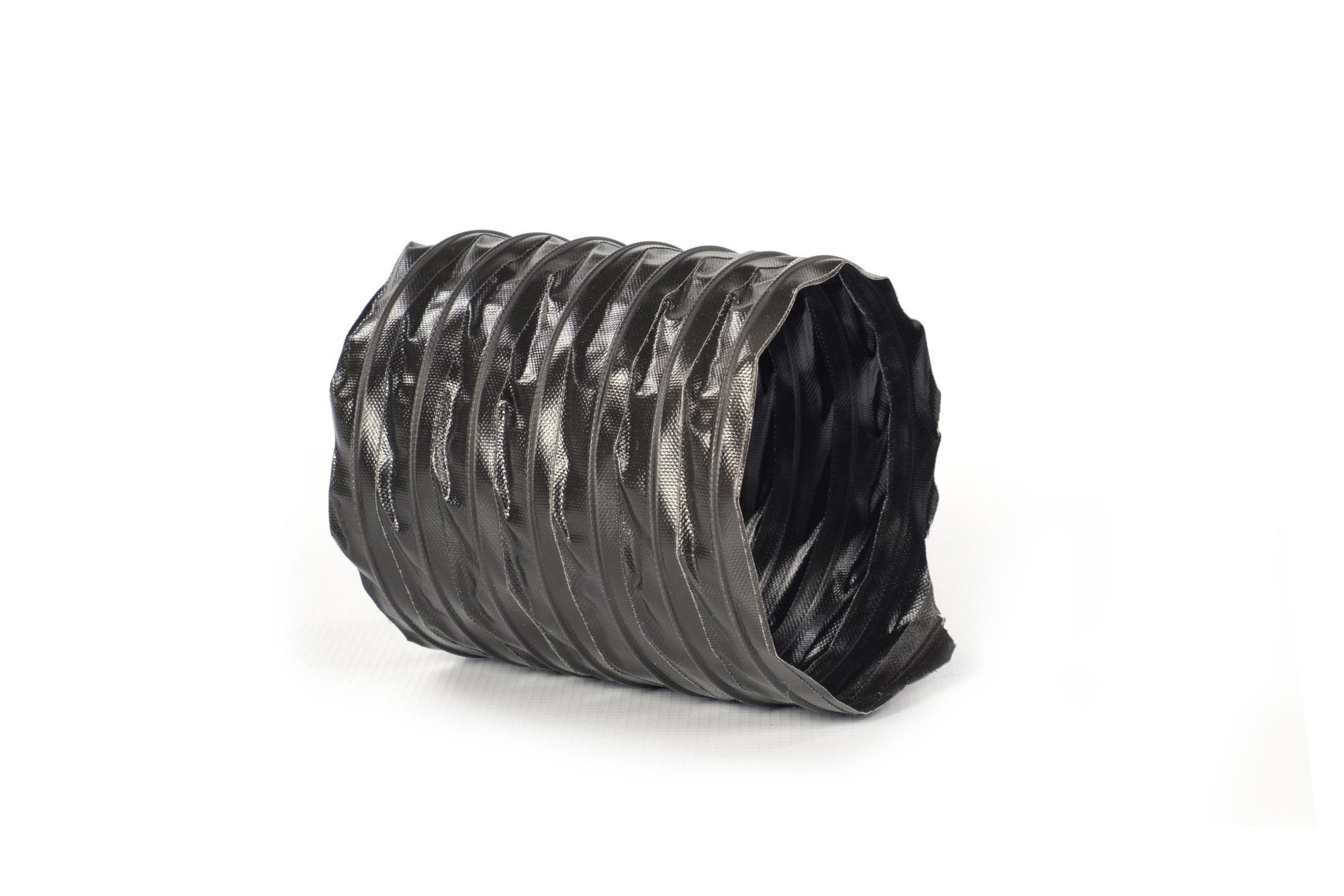

ETM90-FV Flexible ducts in fibreglass fabric

Description :

Flexible ducts made of fibreglass fabric, PVC-coated on both sides and with inner steel wire helix.

Characteristics :

Colour : black
Temperature range: from -20°C to +90°C temperature tips +120°C.
Radius : 0,7 x diameter.
Axial compressibility : 8:1.

Size:

Standard 10 meters (20 meters on request),.

Use :

- Suction of fumes, gases and vapours
- Ventilation and aeration
- Civil and naval air conditioning

The special design allows the use in suction and air ventilation also with moving parts.

Reaction to fire:

Class M1 (NF P92 503) class 1 (dm 26/06/84) + (DM 03/01/01)

Information and price list
Documents
Recommended Products
Information request

Price list

The length of the hose should to be considered in a extended position and at environment temperature (16/18°C - tolerance ±2%)

a.r. : price on request

Item normally available from stock

internal ø	ETM90-FV	internal ø	ETM90-FV	internal ø	ETM90-FV	internal ø	ETM90-FV	internal ø	ETM90-FV
	euro		euro		euro		euro		euro
40	13,01	75	16,49	130	23,66	250	40,35	500	82,99
45	a.r.	80	17,52	140	25,25	275	a.r.	550	92,45
50	13,42	90	18,38	150	26,73	300	47,50	600	101,88
55	a.r.	100	19,27	160	28,32	315	49,92	700	127,71
60	13,66	110	20,47	180	31,06	350	53,47
65	a.r.	120	21,60	200	33,62	400	67,18
70	15,58	125	22,66	225	a.r.	450	74,57
