GE120-XL Fire grilles
Description:
Grilles with fire resistance EI 120 (Ve i ↔ o) certified according to the EN 1364-1 Standard, suitable for the natural ventilation of technical rooms.
Characteristics :
Linear bars made of synthetic material with inside fire-resistant intumescent material up to 100°C.
For indoor use and suitable for installation in rigid walls.
HDF-reinforced external frame
Use :
The GE120-XL grille can be used as a fire resistant grille or as a transfer grille in a rigid wall.
It is not suitable for installation on ducts or ducted boxes.
When used as a transfer grille, the air must move naturally without any forced air flow (e.g. pressurised or negative-pressure room).
Important note:
The GE120-XL grille is tested in standardised constructions according to the EN 1634-1 / EN 1364-1 / EN 1364-2 Standards.
The results achieved are valid for similar supporting structures with a fire resistance, thickness and density equal to or greater than the supporting construction used during the test.
Certification table :
| installation on | characteristics | certifications |
| Rigid wall | aerated concrete wall with thickness ≥ 100 mm | EI 120 (Ve i ↔ o) |

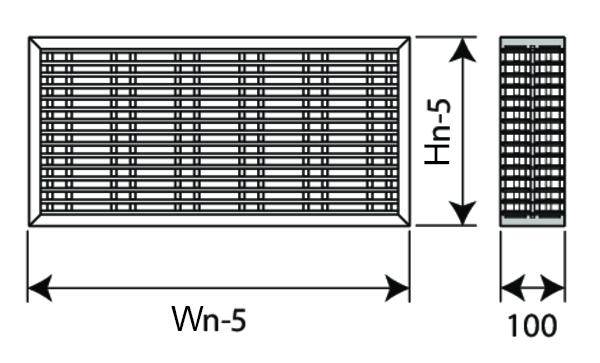

Dimensions and price list of GE120-XL
| Hn: : height (mm) | Wn: Base (mm) | ||||||||||
| 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | |
| euro | euro | euro | euro | euro | euro | euro | euro | euro | euro | euro | |
| 200 | - | - | - | - | - | - | - | 1166,52 | 1230,48 | 1387,65 | 1544,90 |
| 300 | - | - | - | - | - | - | - | 1443,50 | 1537,07 | 1705,22 | 1873,50 |
| 400 | - | - | - | - | - | - | - | 2182,38 | 2310,56 | 2624,87 | 2939,21 |
| 500 | 1089,97 | 1229,36 | 1394,19 | 1583,15 | 1707,81 | 1831,77 | 2324,43 | 2448,67 | 2572,89 | 3003,84 | 3434,73 |
| 600 | 1145,01 | 1305,72 | 1500,44 | 1727,62 | 1870,13 | 2101,49 | 2549,68 | 2736,74 | 2923,64 | 3495,93 | 4068,03 |
| 700 | 1362,58 | 1555,91 | 1779,04 | 2030,90 | 2237,96 | 2457,89 | 3063,23 | 3282,30 | 3501,34 | 4032,49 | 4563,70 |
| 800 | 1578,89 | 1805,20 | 2057,31 | 2334,32 | 2605,70 | 2814,16 | 3576,86 | 3827,91 | 4079,04 | 4569,18 | 5059,30 |
