GE120 Fire grilles
Description:
Grilles with fire resistance EI 120 (Ve i ↔ o) certified according to the EN 1364-1 Standard, suitable for the natural ventilation of technical rooms.
Characteristics :
Linear bars made of synthetic material with inside fire-resistant intumescent material up to 100°C.
For indoor use and suitable for installation in rigid walls.
HDF-reinforced external frame
Use :
The GE120 grille can be used as a fire resistant grille or as a transfer grille in a rigid wall.
It is not suitable for installation on ducts or ducted boxes.
When used as a transfer grille, the air must move naturally without any forced air flow (e.g. pressurised or negative-pressure room).
Important note:
The GE120 grille is tested in standardised constructions according to the EN 1634-1 / EN 1364-1 / EN 1364-2 Standards.
The results achieved are valid for similar supporting structures with a fire resistance, thickness and density equal to or greater than the supporting construction used during the test.
Certification table
| installation on | characteristics | certifications |
| Rigid wall | aerated concrete wall with thickness ≥ 100 mm | EI 120 (Ve i ↔ o) |

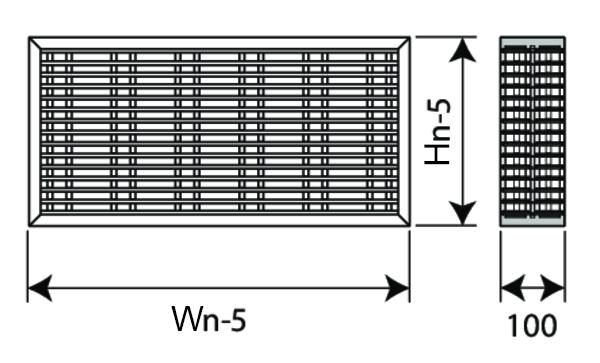

Dimensions and price list of GE120
| Hn: : height (mm) | Wn: Base (mm) | |||||||||||||
| 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 | 650 | 700 | 750 | 800 | |
| euro | euro | euro | euro | euro | euro | euro | euro | euro | euro | euro | euro | euro | euro | |
| 100 | 131,55 | 148,08 | 164,71 | 181,29 | 197,87 | 214,48 | 241,70 | 268,95 | 285,56 | 302,09 | 324,79 | 347,50 | 373,38 | 399,51 |
| 150 | 157,30 | 178,32 | 199,26 | 220,25 | 251,92 | 283,63 | 304,55 | 325,51 | 346,48 | 367,50 | 395,05 | 422,62 | 449,57 | 476,56 |
| 200 | 182,97 | 208,41 | 244,43 | 280,48 | 305,88 | 331,37 | 367,37 | 403,42 | 428,90 | 454,20 | 488,27 | 522,31 | 555,66 | 589,06 |
| 250 | 208,78 | 249,22 | 284,36 | 319,44 | 354,61 | 389,70 | 430,19 | 470,75 | 500,57 | 530,36 | 570,08 | 609,87 | 648,84 | 687,80 |
| 300 | 234,56 | 290,19 | 324,39 | 358,54 | 403,34 | 448,16 | 493,11 | 538,04 | 572,27 | 606,50 | 652,02 | 697,43 | 741,95 | 698,60 |
| 350 | 271,04 | 320,41 | 364,29 | 408,23 | 457,49 | 506,70 | 556,06 | 605,35 | 643,83 | 682,48 | 733,66 | 784,80 | 834,99 | 885,05 |
| 400 | 307,44 | 350,60 | 404,19 | 457,81 | 511,54 | 565,34 | 618,96 | 672,53 | 715,56 | 758,45 | 815,36 | 872,22 | 927,87 | 983,55 |
