CR120 European circular fire dampers for small diameters

Versions on request

With electromagnet drive normally energised or normally de-energised , code CR120 + UNIQ VD/VM FDCB.

Characteristics

Galvanised steel structure.
20 mm thick refractory blade.
Dimensions: from Ø 100 to Ø 315
Heat-expanding perimeter seal.
2 microswitches (one start and one end switch) already installed.
Easy to install.
Optimised free surface and minimal pressure drop. Total absence of levers.
Optimal acoustic performance.
Class C air tightness according to EN1751.
Suitable for recessed installation.
Suitable for rigid wall, rigid floor and lightweight wall (plasterboard).
Does not require maintenance.
For indoor use.
Operating temperature: max. 50°C

ONE RFT actuator characteristics

The microprocessor-controlled servomotor with spring return, ONE Rf-t, is designed to efficiently operate Rf-t fire dampers of any size.
The main characteristics of the ONE Rf-t actuator are the following:
• very low stand-by energy consumption (0.12 W) which allows for up to 5 times less energy consumption compared to conventional servomotors installed in fire dampers;
• the opening status of the fire damper is visible via an indicator located on the actuator; in addition to this, an LED indicates whether the device is powered;
• the main thermal activation device allows for operational tests to be performed even if there is no mains power supply;
• a further activation device is integrated in the actuator in order to detect a possible fire outside the duct;

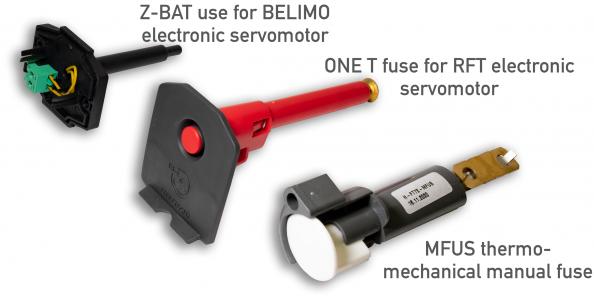

• the fuse can be replaced quickly and easily. The fuse housing is located in the servomotor body and it can also be used as an inspection hole for an endoscopic camera;
• the damper can be reset manually using a common 9 Volt alkaline battery. Up to 50 reset cycles can be performed with a single battery;
• IP54 enclosure made of shock-resistant technical polymer.
• there is a pair of microswitches at the start and at the end. Both power and position cables are oversized and clearly identified.
• Power supply 24 VAC/VDC (-10/+20%) or 230 VAC (-15/+15%).

Minimum distance principle

This type of fire damper has been optimised to minimise the installation distance between two dampers and between the damper and the adjacent wall.
CR120 FIRE DAMPERS CAN BE INSTALLED COUPLED AND ADJACENT TO A WALL, CEILING OR FLOOR.
