EDQ 10-14, Multidirectional square diffusers - models from 10 to 14
EDQ 10-14 Multidirectional square diffusers - models from 10 to 14
Description

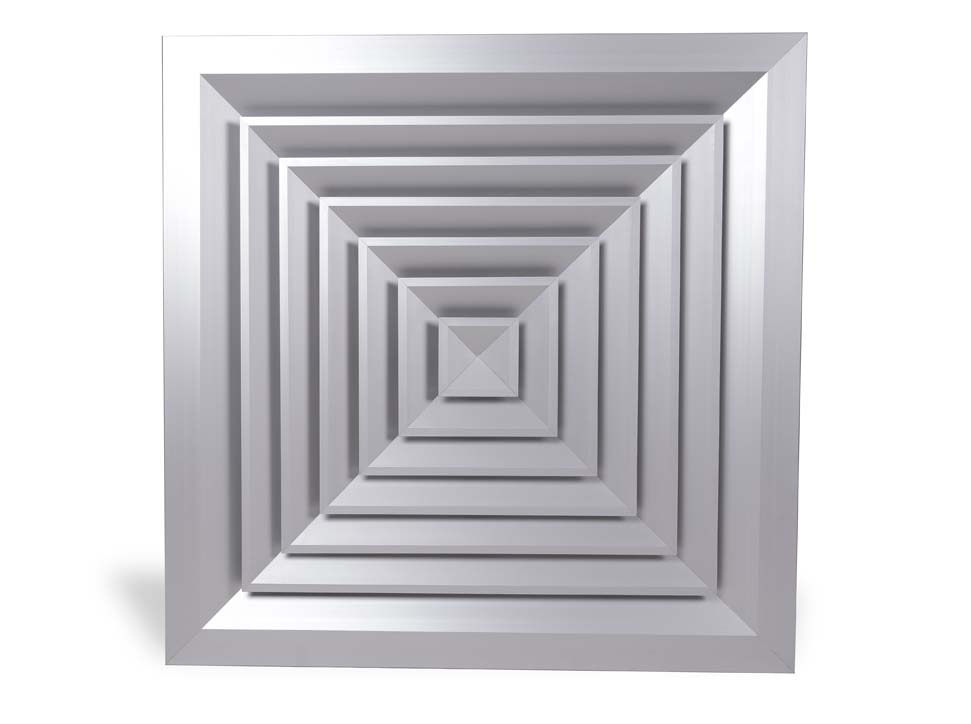

Multidirectional square diffusers with removable cones.
Characteristics
Material: aluminium.
Finish: natural anodised.
Installation: fastening by means of non-visible screws.
Use
Very versatile diffuser, especially suitable in systems where it is necessary to control the air throw in specific directions.
On request
White RAL 9016 painting or other RAL colours (prices on request).
Accessories
- SC galvanised steel regulation damper with blades with opposing movement.
- EPZ-EDQ galvanised steel plenum.
- EPI-EDQ galvanised steel insulated plenum.
Operating data EDQ10
Vk: effective speed (m/s)
m³/h: flow rate
Pa: pressure drops in Pascal
L(m): air throw in metres calculated on ceiling installation, terminal velocity 0.25 m/s
dB(A): noise level
all dimensions are expressed in mm.
|
dimensions HxL |
Vk (m/s) | 3 | 4 | 5 | 6 | ||||
| effective cross-section m2 | m3/h | L(m) | m3/h | L(m) | m3/h | L(m) | m3/h | L(m) | |
| 150x150 | 0,010 | 108 | 1,2 | 144 | 1,6 | 180 | 2 | 216 | 2,6 |
| 225x225 | 0,022 | 238 | 1.8 | 317 | 2,5 | 396 | 3,2 | 475 | 3,8 |
| 300x300 | 0,038 | 410 | 2,4 | 547 | 3,2 | 686 | 4 | 820 | 4,8 |
| 375x375 | 0,058 | 626 | 2,9 | 835 | 3,9 | 1044 | 4,8 | 1253 | 5,8 |
| 450x450 | 0,085 | 918 | 3,6 | 1224 | 4,8 | 1530 | 6 | 1836 | 7,2 |
| 525x525 | 0,116 | 1253 | 4,2 | 1670 | 5,4 | 2088 | 7 | 2505 | 8,4 |
| 600x600 | 0,150 | 1620 | 4,6 | 2160 | 6,4 | 2700 | 7,8 | 3240 | 9,5 |
| pressure drop | Pa | 5 | 10 | 15 | 20 | ||||
| noise level | dB(A) | 20/25 | 30/35 | 35/40 | 40/45 | ||||
Operating data EDQ11

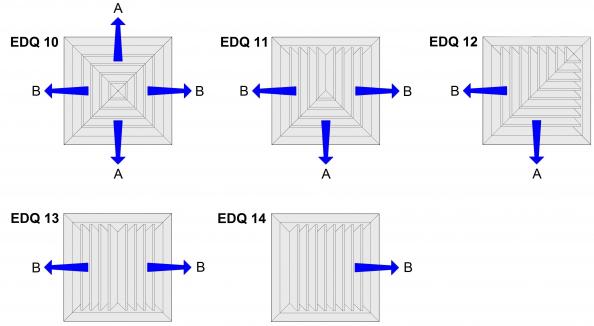

LA: air throw on side A (m)
LB: air throw on side B (m)
Pa: pressure drops in Pascal
dB(A): noise level
all dimensions are expressed in mm
|
dimensions HxL |
Vk (m/s) | 3 | 4 | 5 | 6 | ||||||||
| effective cross-section m2 | m3/h | LA(m) | LB(m) | m3/h | LA(m) | LB(m) | m3/h | LA(m) | LB(m) | m3/h | LA(m) | LB(m) | |
| 150x150 | 0,010 | 108 | 1,5 | 1,7 | 144 | 2,1 | 2,5 | 180 | 2,6 | 3 | 216 | 3 | 3,4 |
| 225x225 | 0,022 | 238 | 2,3 | 2,9 | 317 | 2,7 | 3,5 | 396 | 3,8 | 4,7 | 475 | 4,6 | 5,6 |
| 300x300 | 0,038 | 410 | 3 | 3,4 | 547 | 3,8 | 4,8 | 686 | 5 | 6,2 | 820 | 5,9 | 7,2 |
| 375x375 | 0,058 | 626 | 3,6 | 4,2 | 835 | 4,7 | 5,7 | 1044 | 5,8 | 7 | 1253 | 6,9 | 8,3 |
| 450x450 | 0,085 | 918 | 4,1 | 5,1 | 1224 | 5,6 | 7 | 1530 | 6,8 | 8,4 | 1836 | 8,2 | 10,2 |
| 525x525 | 0,116 | 1253 | 4,8 | 6,2 | 1670 | 6,5 | 7,9 | 2088 | 8,2 | 10 | 2505 | 9,8 | 12,6 |
| 600x600 | 0,150 | 1620 | 5,4 | 6,6 | 2160 | 7 | 8,5 | 2700 | 8,8 | 10,9 | 3240 | 10.3 | 12,8 |
| pressure drop | Pa | 5 | 10 | 15 | 20 | ||||||||
| noise level | dB(A) | 20/25 | 30/35 | 35/40 | 40/45 | ||||||||
Operating data EDQ12
Vk: effective speed (m/s)
m³/h: flow rate
Pa: pressure drops in Pascal
L(m): air throw in metres calculated on ceiling installation, terminal velocity 0.25 m/s
dB(A): noise level
all dimensions are expressed in mm.
|
dimensions HxL |
Vk (m/s) | 3 | 4 | 5 | 6 | ||||
| effective cross-section m2 | m3/h | L(m) | m3/h | L(m) | m3/h | L(m) | m3/h | L(m) | |
| 150x150 | 0,009 | 98 | 2,3 | 130 | 2,9 | 162 | 3,6 | 195 | 4,7 |
| 225x225 | 0,020 | 216 | 3,6 | 288 | 5 | 360 | 3,4 | 432 | 7,6 |
| 300x300 | 0,034 | 368 | 4,6 | 490 | 6,1 | 612 | 7,8 | 735 | 9,4 |
| 375x375 | 0,051 | 550 | 5,7 | 735 | 7,7 | 918 | 9,4 | 1101 | 11,3 |
| 450x450 | 0,074 | 800 | 7 | 1066 | 9,4 | 1332 | 11,6 | 1598 | 13,5 |
| 525x525 | 0,100 | 1080 | 8 | 1440 | 10,4 | 1800 | 13,5 | 2160 | 16 |
| 600x600 | 0,126 | 1360 | 8,3 | 2160 | 6,4 | 2700 | 7,8 | 3240 | 9,5 |
| pressure drop | Pa | 5 | 10 | 15 | 20 | ||||
| noise level | dB(A) | 20/25 | 30/35 | 35/40 | 40/45 | ||||
Operating data EDQ13
Vk: effective speed (m/s)
m³/h: flow rate
Pa: pressure drops in Pascal
L(m): air throw in metres calculated on ceiling installation, terminal velocity 0.25 m/s
dB(A): noise level
all dimensions are expressed in mm.
|
dimensions HxL |
Vk (m/s) | 3 | 4 | 5 | 6 | ||||
| effective cross-section m2 | m3/h | L(m) | m3/h | L(m) | m3/h | L(m) | m3/h | L(m) | |
| 150x150 | 0,009 | 98 | 2,3 | 130 | 2,9 | 162 | 3,6 | 195 | 4,7 |
| 225x225 | 0,020 | 216 | 3,8 | 288 | 5,2 | 360 | 3,6 | 432 | 7,8 |
| 300x300 | 0,034 | 368 | 4,6 | 490 | 6,3 | 612 | 8,2 | 735 | 9,8 |
| 375x375 | 0,051 | 550 | 6 | 735 | 8 | 918 | 9,8 | 1101 | 11,8 |
| 450x450 | 0,074 | 800 | 7,1 | 1066 | 9,8 | 1332 | 12 | 1598 | 14 |
| 525x525 | 0,100 | 1080 | 8,4 | 1440 | 10,8 | 1800 | 14 | 2160 | 16,8 |
| 600x600 | 0,126 | 1360 | 8,6 | 1815 | 12 | 2268 | 13,8 | 2722 | 18 |
| pressure drop | Pa | 5 | 10 | 15 | 20 | ||||
| noise level | dB(A) | 20/25 | 30/35 | 35/40 | 40/45 | ||||
Operating data EDQ14
Vk: effective speed (m/s)
m³/h: air flow
Pa: pressure drop in Pascal
L(m): air throw in meters calculated on ceiling installation, terminal velocity 0.25 m/s
dB(A): noise level
Dimensions are expressed in mm
|
dimensions HxL |
Vk (m/s) | 3 | 4 | 5 | 6 | ||||
| effective cross-section m2 | m3/h | L(m) | m3/h | L(m) | m3/h | L(m) | m3/h | L(m) | |
| 150x150 | 0,009 | 98 | 3,1 | 130 | 3,9 | 162 | 4,8 | 195 | 6,3 |
| 225x225 | 0,020 | 216 | 5,2 | 288 | 7 | 360 | 4,9 | 432 | 10,5 |
| 300x300 | 0,034 | 368 | 6,5 | 490 | 8,1 | 612 | 11 | 735 | 13,2 |
| 375x375 | 0,051 | 550 | 8,1 | 735 | 10,8 | 918 | 13,2 | 1101 | 16 |
| 450x450 | 0,074 | 800 | 9,9 | 1066 | 13,2 | 1332 | 16,2 | 1598 | 18,9 |
| 525x525 | 0,100 | 1080 | 11,3 | 1440 | 14,6 | 1800 | 18,4 | 2160 | 22 |
| 600x600 | 0,126 | 1360 | 11,5 | 1815 | 16 | 2268 | 18 | 2722 | 24 |
| pressure drop | Pa | 5 | 10 | 15 | 20 | ||||
| noise level | dB(A) | 20/25 | 30/35 | 35/40 | 40/45 | ||||

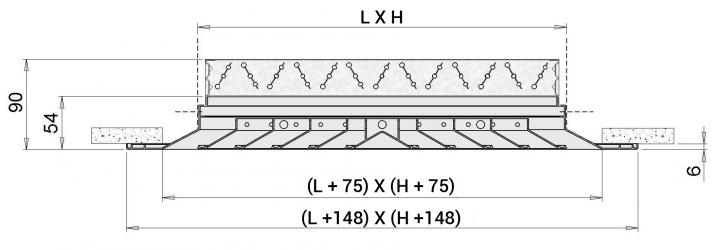

SC regulation damper
Galvanised steel regulation damper with blades with opposing movement.

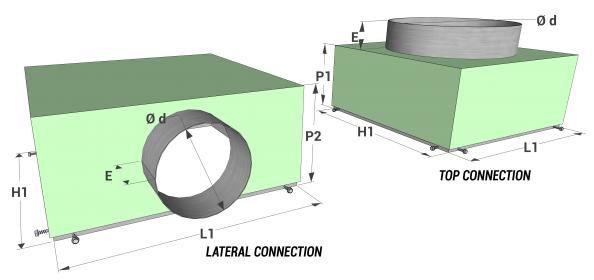

Plenum
| EDQ | L1 x H1 | Ø d | P1 | P2 | E |
| 150x150 | 155x155 | 125 | 200 | 245 | 50 |
| 225x225 | 230x230 | 150 | 200 | 270 | 50 |
| 300x300 | 305x305 | 200 | 200 | 320 | 50 |
| 375x375 | 380x380 | 200 | 200 | 320 | 50 |
| 450x450 | 455x455 | 250 | 250 | 370 | 50 |
| 525x525 | 530x530 | 300 | 200 | 400 | 50 |
| 600x600 | 605x605 | 300 | 200 | 400 | 50 |
Price list
Note: painted white RAL 9016 + 20%.
|
dimensions LxH |
EDQ10 | EDQ11 | EDQ12 | EDQ13 | EDQ14 |
| euro | euro | euro | euro | euro | |
| 150x150 | 71,78 | 80,86 | 80,86 | 65,35 | 65,35 |
| 225x225 | 76,33 | 88,13 | 88,13 | 72,73 | 72,73 |
| 300x300 | 92,71 | 105,38 | 105,38 | 78,15 | 78,15 |
| 375x375 | 114,85 | 131,71 | 131,71 | 92,51 | 92,51 |
| 450x450 | 140,27 | 152,62 | 152,62 | 114,44 | 114,44 |
| 525x525 | 169,88 | 186,23 | 186,23 | 138,05 | 138,05 |
| 600x600 | 197,23 | 214,46 | 214,46 | 181,69 | 181,69 |
Accessories
|
dimensions LxH |
damper SC |
lateral connection | top connection | ||
| galvanized plenum | isolated plenum | galvanized plenum | isolated plenum | ||
| EPZ-EDQ | EPI-EDQ | EPZ-EDQ | EPI-EDQ | ||
| euro | euro | euro | euro | euro | |
| 150x150 | 13,57 | 36,81 | 49,15 | 30,20 | 41,93 |
| 225x225 | 16,32 | 42,92 | 57,26 | 34,70 | 47,84 |
| 300x300 | 27,79 | 51,84 | 69,02 | 39,97 | 54,72 |
| 375x375 | 34,93 | 69,33 | 92,04 | 55,88 | 72,78 |
| 450x450 | 44,82 | 81,24 | 107,83 | 62,18 | 81,08 |
| 525x525 | 76,00 | 107,25 | 134,73 | 81,62 | 103,95 |
| 600x600 | 76,00 | 137,07 | 169,59 | 97,22 | 121,28 |
