Description

Hidden linear diffuser with single or multi slots, width 20 or 30 mm, with aluminium aerodynamic profile and adjustable deflectors for optimal air throw control.
Also available with equalizer and sliding damper.

Features

Material: aluminium;
EDLH finish: RAL9005 black painted aluminium;
EDLHB finish: RAL9016 white painted aluminium;
Slots number: from 1 to 3;
Slots width: 20 or 30 mm;

Installation: by plenum box with mounting bridge;

Possible dimensions in one piece:
- Minimum length 300 mm:
- Maximum length 2000 mm;

Use

Diffuser suitable for both air supply and exhaust in large rooms. Its modularity allows great freedom of design.
The EDLH system is designed for the use on plasterboard walls and false ceiling with width 12,5 mm.

Models

-EDLH10-FA - EDLHB10-FA hidden linear diffusers 20 mm slot without deflectors (exhaust).
-EDLH20-FA - EDLHB20-FA hidden linear diffusers 20 mm slot with deflectors (supply).
-EDLH30-FA - EDLHB30-FA hidden linear diffusers 20 mm slot without deflectors, with sliding damper (exhaust).
-EDLH40-FA - EDLHB40-FA hidden linear diffusers 20 mm slot with deflectors and sliding damper (supply).
-EDLH10-FB - EDLHB10-FB hidden linear diffusers 30 mm slot without deflectors (exhaust).
-EDLH20-FB - EDLHB20-FB hidden linear diffusers 30 mm slot with deflectors (supply).
-EDLH30-FB - EDLHB30-FB hidden linear diffusers 30 mm slot without deflectors, with sliding damper (exhaust).
-EDLH40-FB - EDLHB40-FB hidden linear diffusers 30 mm slot with deflectors and sliding damper (supply).

Accessories

-galvanized plenum box;
-insulated plenum box;
-mounting bridge;
-continues line kit.


On demand

-Possibility of installation in continuity;
-Plenum box with ovalised rear connection.

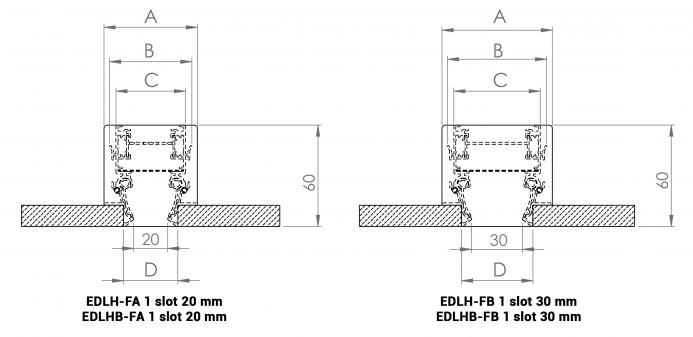

EDLH - EDLHB one slot dimensions

All dimensions are expressed in mm

One slot L A B C D number of fixing brackets
20 mm slot 800 55 48 41 34 2
1000 2
1200 2
1500 2
2000 2
30 mm slot 800 65 58 51 44 2
1000 2
1200 2
1500 2
2000 2

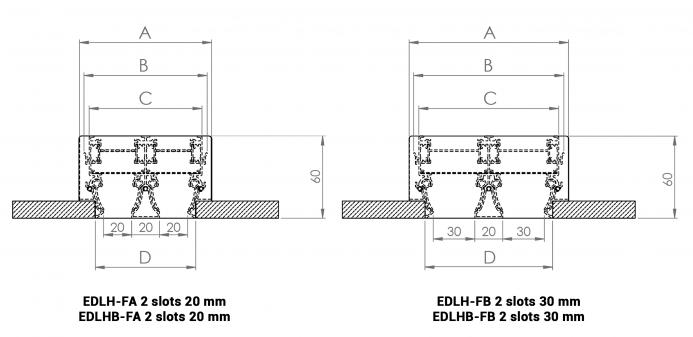

EDLH - EDLHB two slot dimensions

Two slots L A B C D number of fixing brackets
20 mm slots 800 95 88 81 74 2
1000 2
1200 2
1500 2
2000 2
30 mm slots 800 115 108 101 94 2
1000 2
1200 2
1500 2
2000 2

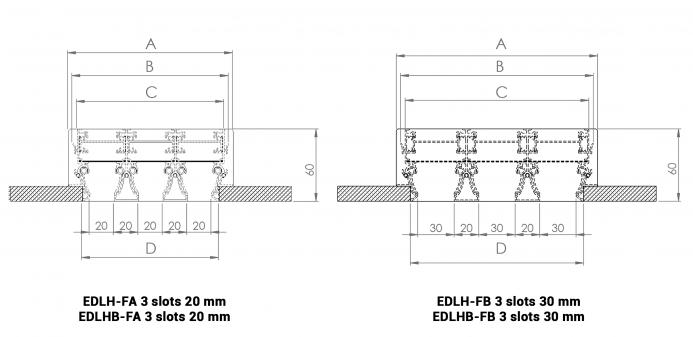

EDLH - EDLHB three slot dimensions

three slots L A B C D number of fixing brackets
20 mm slots 800 135 128 121 114 2
1000 2
1200 2
1500 2
2000 3
30 mm slots 800 165 158 151 144 2
1000 2
1200 2
1500 2
2000 3

Operating data

Data referring to 1m long diffusers, with a terminal throw speed Vt=0.25 m/s, in ceiling installations and with lateral launch with coanda effect.


Data referring to diffusers without damper or with open sliding damper.
Data referring to diffusers with deflectors in the working position with a 50% reduction of the air passage surface.


The position of the deflectors reduces the effective cross-section. When the deflectors are fully open, or when the diffuser is used for exhaust air, the flow rates (expressed in m³/h) indicated in the table can change.


Vk: effective speed (m/s) m³/h: air flow rate
Pa: pressure drops in Pascal
L(m): air throw in meters
dB(A): noise level

slots slot dimension effective cross-section m² Air flow and throw
1 slot 20 mm slot 0,0097 m³/h 70 105 140 175 210 245
L(m) 1.8 2.7 3.6 4.5 5.4 6.3
30 mm slot 0,0146 m3/h 105 158 210 262 315 368
L(m) 1,6 2,5 3,4 4,2 5 5,8
noise level dB(A) <20 22 32 37 44 48
2 slots 20 mm slot 0,0194 m³/h 140 210 280 350 420 490
L(m) 2,6 3,9 5,1 6,4 7,7 9,0
f30 mm slot 0,0292 m³/h 210 316 420 524 630 736
L(m) 2,3 3,6 4,9 6,0 7,1 8,3
noise level dB(A) <20 24 34 39 46 50
3 slots 20 mm slot 0,0291 m³/h 210 315 420 525 630 735
L(m) 3,9 5,8 7,7 9,6 11,6 13,5
30 mm slot 0,0438 m³/h 315 474 630 786 945 1104
L(m) 3,4 5,4 7,3 9,0 10,7 12,4
noise level dB(A) <20 26 36 41 48 52
Vk m/s 2 3 4 5 6 7
pressure drops Pa 7 15 26 41 59 80

Corner connection

Aesthetic connecting element between the two linear diffuser lines with a 90° angle and 500 mm length on each side. It has no ventilation features.


All measurements are expressed in mm.

Continuity kit

The continuity kit is an accessory required to create continuous lines of linear diffusers longer than 2 metres. It is made up of two junction plates that allow for the alignment and connection of two components of the line.

Air throw characteristics

Plenum dimensions and fixing bracket system



1 SLOT		 L       Plenum dimensions
L1 L2 No. of connections Ø d P H E F
20 mm slot 800 800 770 1 145 240 60 80 56
1000 1000 970 1
1200 1200 1170 2
1500 1500 1470 2
2000 2000 1970 2
30 mm slot 800 800 770 1 145 240 70 80 56
1000 1000 970 1
1200 1200 1170 2
1500 1500 1470 2
2000 2000 1970 2



2 SLOTS		 L       Plenum dimensions
L1 L2 No. of connections Ø d P H E F
20 mm slot 800 800 770 2 145 300 100 80 56
1000 1000 970 2
1200 1200 1170 2
1500 1500 1470 2
2000 2000 1970 2
20 mm slot 800 800 770 2 198 300 120 80 56
1000 1000 970 2
1200 1200 1170 2
1500 1500 1470 2
2000 2000 1970 2



3 SLOTS		 L       Plenum dimensions
L1 L2 No. of connections Ø d P H E F
20 mm slot 800 800 770 2 198 300 140 80 56
1000 1000 970 2
1200 1200 1170 2
1500 1500 1470 2
2000 2000 1970 2
30 mm slot 800 800 770 2 198 300 160 80 56
1000 1000 970 2
1200 1200 1170 2
1500 1500 1470 2
2000 2000 1970 2

Price list for EDLH-FA - 1 slot - black RAL9005 - 20 mm slot

Item normally available from stock
EDLH-FA lenght EDLH10-FA EDLH20-FA EDLH30-FA EDLH40-FA PLENUM INSULATED PLENUM
1 SLOT euro euro euro euro euro euro
20 mm slot 800 50,40 52,79 59,26 65,68 59,72 77,01
1000 56,63 59,42 65,82 73,24 64,98 83,85
1200 67,25 71,83 80,07 87,79 81,58 108,33
1500 76,55 87,32 89,86 99,21 87,92 113,29
2000 97,48 113,78 115,04 126,11 100,41 132,50

Price list for EDLH-FA - 2 slot - black RAL9005 - 20 mm slots

EDLH-FA lenght EDLH10-FA EDLH20-FA EDLH30-FA EDLH40-FA PLENUM INSULATED PLENUM
2 SLOT euro euro euro euro euro euro
20 mm slot 800 88,08 94,66 104,06 117,98 69,98 90,85
1000 98,32 106,10 115,23 131,37 75,51 98,45
1200 116,13 127,79 140,03 157,46 86,69 115,06
1500 131,49 154,94 156,15 177,35 90,65 120,74
2000 167,04 201,67 199,89 225,56 103,83 141,80

Price list for EDLH-FA - 3 slot - black RAL9005 - 20 mm slots

EDLH-FA lenght EDLH10-FA EDLH20-FA EDLH30-FA EDLH40-FA PLENUM INSULATED PLENUM
3 SLOT euro euro euro euro euro euro
20 mm slot 800 115,42 127,03 137,17 158,80 75,13 98,03
1000 129,04 142,51 152,28 177,19 81,78 107,22
1200 153,29 172,46 186,75 213,80 93,27 240,68
1500 173,62 209,17 208,00 240,67 99,26 132,85
2000 221,74 273,28 267,67 307,37 115,09 157,63

Price list for EDLH -FB - 1 slot - black RAL9005 - 30 mm slot

Item normally available from stock
EDLH-FB lenght EDLH10-FB EDLH20-FB EDLH30-FB EDLH40-FB PLENUM INSULATED PLENUM
1 slot euro euro euro euro euro euro
30 mm slot 800 51,40 57,19 60,45 67,00 60,29 77,78
1000 57,75 63,77 67,13 74,70 65,64 84,74
1200 73,98 81,07 88,07 96,58 85,04 109,33
1500 84,21 91,61 98,84 109,12 88,77 114,40
2000 99,42 109,79 117,33 128,62 101,49 133,92

Price list for EDLH -FB - 2 slot - black RAL9005 - 30 mm slots

EDLH-FB lenght EDLH10-FB EDLH20-FB EDLH30-FB EDLH40-FB PLENUM INSULATED PLENUM
2 Slots euro euro euro euro euro euro
30 mm slots 800 94,25 101,27 111,33 126,23 67,90 90,77
1000 105,20 113,51 123,28 140,55 74,74 100,26
1200 124,25 136,73 149,82 168,47 95,65 127,62
1500 140,69 165,78 167,07 189,76 101,07 135,35
2000 178,72 215,78 213,88 241,34 117,36 160,79

Price list for EDLH -FB - 3 slot - black RAL9005 - 30 mm slots

EDLH-FB lenght EDLH10-FB EDLH20-FB EDLH30-FB EDLH40-FB PLENUM INSULATED PLENUM
3 slots euro euro euro euro euro euro
30 mm slots 800 123,49 135,91 146,76 169,90 76,36 99,76
1000 138,06 152,48 162,93 189,58 83,20 109,21
1200 164,01 184,53 199,81 228,75 95,65 127,62
1500 185,77 223,81 222,55 257,50 101,07 135,35
2000 237,25 292,40 286,40 328,87 117,36 160,79

Price list for EDLHB-FA - 1 slot - white RAL9016 - 20 mm slot

Item normally available from stock
EDLHB-FA lenght EDLHB10-FA EDLHB20-FA EDLHB30-FA EDLHB40-FA PLENUM INSULATED PLENUM
1 slot euro euro euro euro euro euro
30 mm slots 800 50,40 52,79 59,26 65,68 59,72 77,01
1000 56,63 59,42 65,82 73,24 64,98 83,85
1200 67,25 71,83 80,07 87,79 81,58 108,33
1500 76,55 87,32 89,86 99,21 87,92 113,29
2000 97,48 113,78 115,04 126,11 100,41 132,50

Price list for EDLHB-FA - 2 slot - white RAL9016 - 20 mm slots

EDLHB-FA lenght EDLHB10-FA EDLHB20-FA EDLHB30-FA EDLHB40-FA PLENUM INSULATED PLENUM
2 slots euro euro euro euro euro euro
30 mm slots 800 88,08 94,66 104,06 117,98 69,98 90,85
1000 98,32 106,10 115,23 131,37 75,51 98,45
1200 116,13 127,79 140,03 157,46 86,69 115,06
1500 131,49 154,94 156,15 177,35 90,65 120,74
2000 167,04 201,67 199,89 225,56 103,83 141,80

Price list for EDLHB-FA - 3 slot - white RAL9016 - 20 mm slots

EDLHB-FA lenght EDLHB10-FA EDLHB20-FA EDLHB30-FA EDLHB40-FA PLENUM INSULATED PLENUM
3 slots euro euro euro euro euro euro
30 mm slots 800 115,42 127,03 137,17 158,80 75,13 98,03
1000 129,04 142,51 152,28 177,19 81,78 107,22
1200 153,29 172,46 186,75 213,80 93,27 240,68
1500 173,62 209,17 208,00 240,67 99,26 132,85
2000 221,74 273,28 267,67 307,37 115,09 157,63

Price list for EDLHB -FB - 1 slot - white RAL9016 - 30 mm slot

Item normally available from stock
EDLHB-FB lenght EDLHB10-FB EDLHB20-FB EDLHB30-FB EDLHB40-FB PLENUM INSULATED PLENUM
1 slot euro euro euro euro euro euro
30 mm slot 800 51,40 57,19 60,45 67,00 60,29 77,78
1000 57,75 63,77 67,13 74,70 65,64 84,74
1200 73,98 81,07 88,07 96,58 85,04 109,33
1500 84,21 91,61 98,84 109,12 88,77 114,40
2000 99,42 109,79 117,33 128,62 101,49 133,92

Price list for EDLHB-FB - 2 slot - white RAL9016 - 30 mm slots

EDLHB-FB lenght EDLHB10-FB EDLHB20-FB EDLHB30-FB EDLHB40-FB PLENUM INSULATED PLENUM
2 slots euro euro euro euro euro euro
30 mm slots 800 94,25 101,27 111,33 126,23 67,90 90,77
1000 105,20 113,51 123,28 140,55 74,74 100,26
1200 124,25 136,73 149,82 168,47 95,65 127,62
1500 140,69 165,78 167,07 189,76 101,07 135,35
2000 178,72 215,78 213,88 241,34 117,36 160,79

Price list for EDLHB-FB - 3 slot - white RAL9016 - 30 mm slots

EDLHB-FB lenght EDLHB10-FB EDLHB20-FB EDLHB30-FB EDLHB40-FB PLENUM INSULATED PLENUM
3 slots euro euro euro euro euro euro
30 mm slots 800 123,49 135,91 146,76 169,90 76,36 99,76
1000 138,06 152,48 162,93 189,58 83,20 109,21
1200 164,01 184,53 199,81 228,75 95,65 127,62
1500 185,77 223,81 222,55 257,50 101,07 135,35
2000 237,25 292,40 286,40 328,87 117,36 160,79

Price list

Item normally available from stock
Fixing brackets and Kit for continuos line euro
fixing bracket for EDLH-FA EDLH-FB EDLHB-FA EDLHB-FB - 1 SLOT 11,87
fixing bracket for EDLH-FA EDLH-FB EDLHB-FA EDLHB-FB - 2 SLOTS 11,87
fixing bracket for EDLH-FA EDLH-FB EDLHB-FA EDLHB-FB - 3 SLOTS 11,87
continuity kit 2,23

Aesthetic corner price list

Angular without deflectors EDLH-FA EDLH-FB EDLHB-FA EDLHB-FB
euro euro euro euro
1 SLOT a.r. a.r. a.r. a.r.
2 SLOTS a.r. a.r. a.r. a.r.
3 SLOTS a.r. a.r. a.r. a.r.
continuity kit 2,23 2,23 2,23 2,23
