EDLS - EDLSB Linear Diffuser for Hidden Installation

Description

Hidden linear diffuser with single 20 mm or 30 mm slot with aerodynamic aluminum profile and adjustable deflectors for optimal air throw control. Also available with sliding volume damper.

Features

Material: aluminium.

EDLS finish: black RAL9005 painted aluminum frame and deflectors.
EDLSB finish: white RAL9016 painted aluminum frame and deflectors.

Slot: 20 mm or 30 mm.

Installation: by plenum box with mounting bridge, ceiling finishing with anti-crack tape on the frame and subsequent plaster skimming.

Possible dimensions in one piece:
- minimum length 300 mm;
- maximum length 2000 mm.

Use

Diffuser suitable for both air supply and exhaust in large rooms. Its modularity allows great freedom of design.

Models

-EDLS10-FA - EDLSB10-FA hidden linear diffusers 20 mm slot without deflectors (exhaust).
-EDLS20-FA - EDLSB20-FA hidden linear diffusers 20 mm slot with deflectors (supply).
-EDLS30-FA - EDLSB30-FA hidden linear diffusers 20 mm slot without deflectors, with sliding damper (exhaust).
-EDLS40-FA - EDLSB40-FA hidden linear diffusers 20 mm slot with deflectors and sliding damper (supply).
-EDLS10-FB - EDLSB10-FB hidden linear diffusers 30 mm slot without deflectors (exhaust).
-EDLS20-FB - EDLSB20-FB hidden linear diffusers 30 mm slot with deflectors (supply).
-EDLS30-FB - EDLSB30-FB hidden linear diffusers 30 mm slot without deflectors, with sliding damper (exhaust).
-EDLS40-FB - EDLSB40-FB hidden linear diffusers 30 mm slot with deflectors and sliding damper (supply).

Accessories

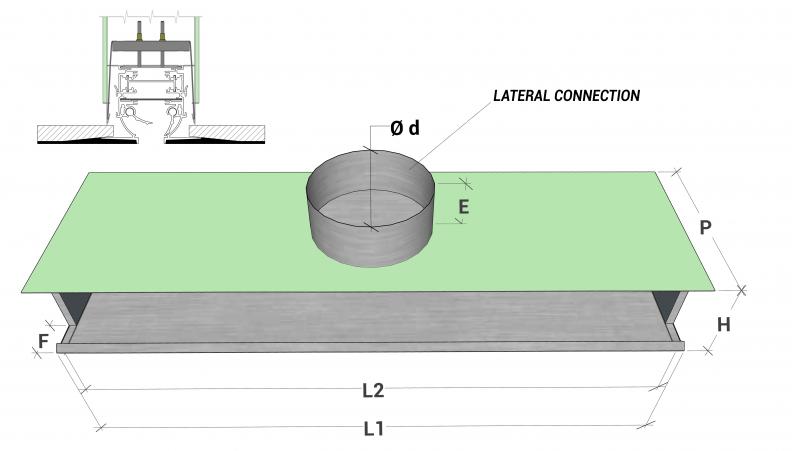

- galvanized plenum box;
- insulated plenum box;
- mounting bridge;
- continues line kit.

Information and price list
Documents
Information request

Concealed linear diffuser dimensions

All dimensions are expressed in mm

Slot	L	A	B	C	E	D	number of fixing brackets

20 mm slot	800	60	55	48	41	80	2
	1000						2
	1200						2
	1500						2
	2000						2
30 mm slot	800	70	65	58	51	90	2
	1000						2
	1200						2
	1500						2
	2000						2

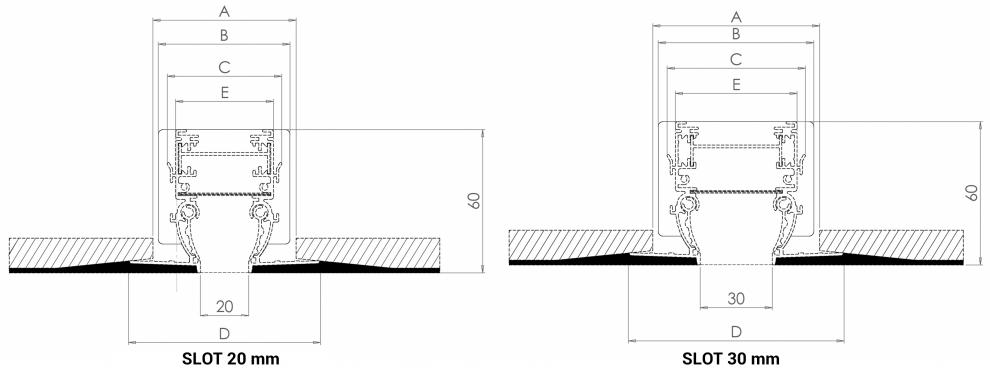

Diffuser dimensional details

Operating data

Data referring to 1m long diffusers, with a terminal throw velocity Vt=0.25 m/s and with a temperature differential of 10/12°C, in ceiling installations and with lateral air throw.

Data referring to diffusers without damper or with open sliding damper.
Data referring to diffusers with deflectors in the working position with a 50% reduction of the air passage surface.

The position of the deflectors reduces the effective cross-section. When the deflectors are fully open or when the diffuser is used for air exhaust, the flow rates expressed in m³/h indicated in the table may be higher.

Vk: effective speed (m/s)
m³/h: air flow rate
Pa: pressure drops in Pascal
L(m): air throw in metres
dB(A): noise level

Slot	effective cross-section m²	Air flow and throw
20 mm slot	0,0097	m³/h	70	105	140	175	210	245
20 mm slot	0,0097	L(m)	1.8	2.7	3.6	4.5	5.4	6.3
30 mm slot	0,0146	m³/h	105	158	210	262	315	368
30 mm slot	0,0146	L(m)	1,6	2,5	3,4	4,2	5	5,8
Vk		m/s	2	3	4	5	6	7
pressure drops		Pa	8	15	26	40	55	70
noise level		dB(A)	<20	22	32	37	44	48

Continuity kit

The continuity kit is an accessory required to create continuous lines of linear diffusers longer than 2 metres. It is made up of two junction plates that allow for the alignment and connection of two components of the line.

Air throw characteristics
